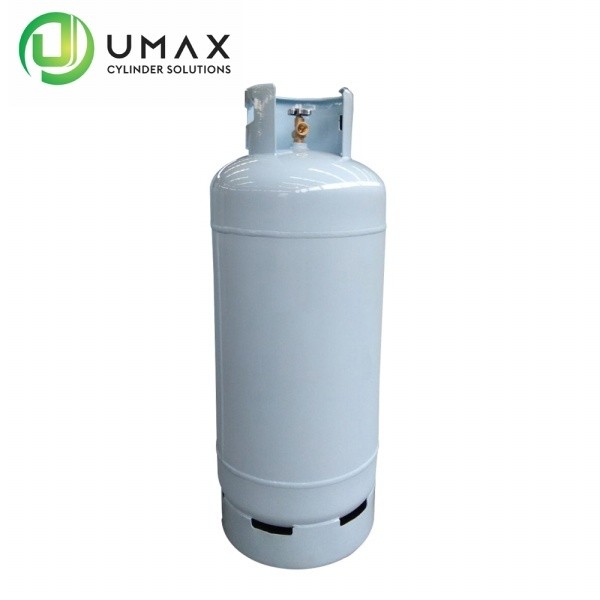

Detailed Specification:

● Max. filling gas weight: 45 Kg

● Water capacity: 108L

● Total height: 1116mm

● Outside diameter of the body:￠407mm

●Inside diameter of the body: ￠400mm

● Body height: 935mm

● Min. wall thickness: 3.2mm

● Nominal wall thickness: 3.5mm

● Outside diameter of the base:￠400mm

● Outside diameter of the shroud:￠230mm

● Steel material: HP295

●Test pressure: 3.2MPa

●Work pressure: 2.1MPa
